Creating the vEdge20 VM
Overview
This is what an earmarked step will look like
We will be deploying a vEdge at Site 20 via vCenter. Make note of the following information for this section. The IP Addressing will not be used for some of the Network Adapters until later.
SITE ID | SYSTEM ID | VM | Network Adapter | Network | Interface | IP | Gateway |
---|---|---|---|---|---|---|---|
20 | 10.255.255.21 | vEdge20-podX | Network Adapter 1 | Management | eth0 | 192.168.0.20/24 | 192.168.0.1 |
Network Adapter 2 | TLOCEXT_vEdge | ge0/1 | 192.168.25.20/24 | ||||
Network Adapter 3 | Site20-VPN10 | ge0/2 | 10.20.10.2/24 | ||||
Network Adapter 4 | Site20-VPN20 | ge0/3 | 10.20.20.2/24 | ||||
Network Adapter 5 | Internet | ge0/0 | 100.100.100.20/24 | 100.100.100.1 | |||
Network Adapter 6 | TLOCEXT2_vEdge | ge0/4 | 192.168.26.20/24 |
- Creating the vEdge20 VM
-
- Deploying the vEdge20 VM on vCenter
- Onboarding vEdge20
- Bootstrapping vEdge20 (Initial Configuration)
- Installing certificates and activating the vEdge
- Onboarding Verification
Deploying the vEdge20 VM on vCenter
-
Click on the bookmark for vCenter or navigate to the following URL: https://10.2.1.50/ui if connected to the GHI DC and 10.1.1.50/ui if connected to the SJC DC. Log in with the credentials provided for your POD.
-
Right click on the host and choose to Deploy OVF Template
-
Choose the Local file option and click on Choose files. Navigate to the SD-WAN images folder and select the file beginning with viptela-edge-. Click on Next.
-

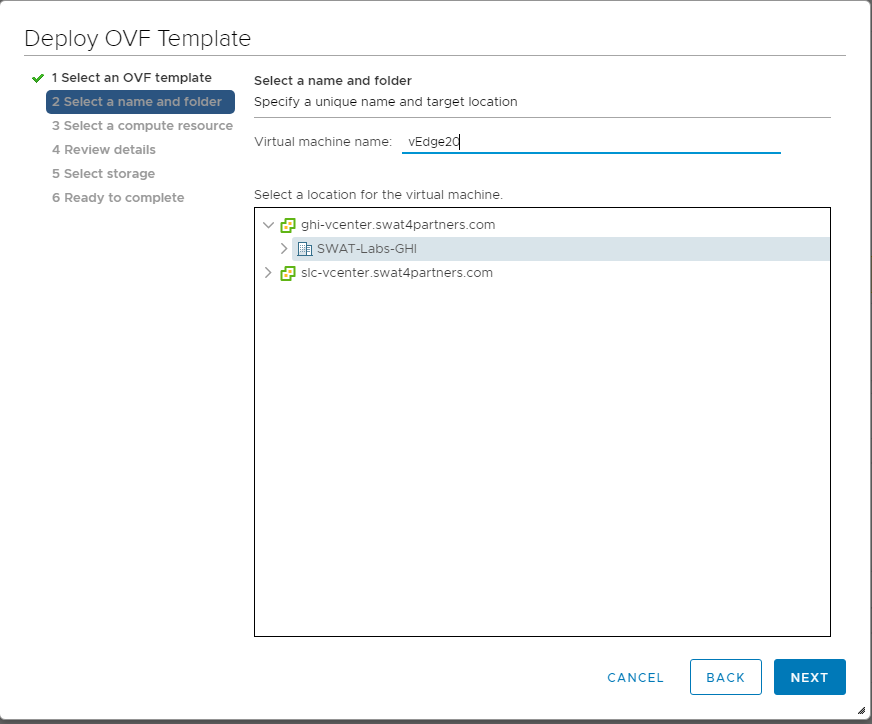

Change the Virtual Machine name to vEdge20-podX and click on Next (where X is your POD number, image below does not have the suffix of podX)
Note: We will only use the podX suffix over here to distinguish between different VMs in our Data Center. The rest of the guide will refer to this VM as vEdge20 -
Select the host assigned to you (image shown as an example only) and click on Next
Note: If the screen gets stuck over here at Validating then close Chrome and open the vCenter in Internet Explorer, going through the same steps. Deployment should go through. This is a known issue with Google Chrome. -
Review the details shown and click on Next
-
Choose the Datastore and click on Next
-

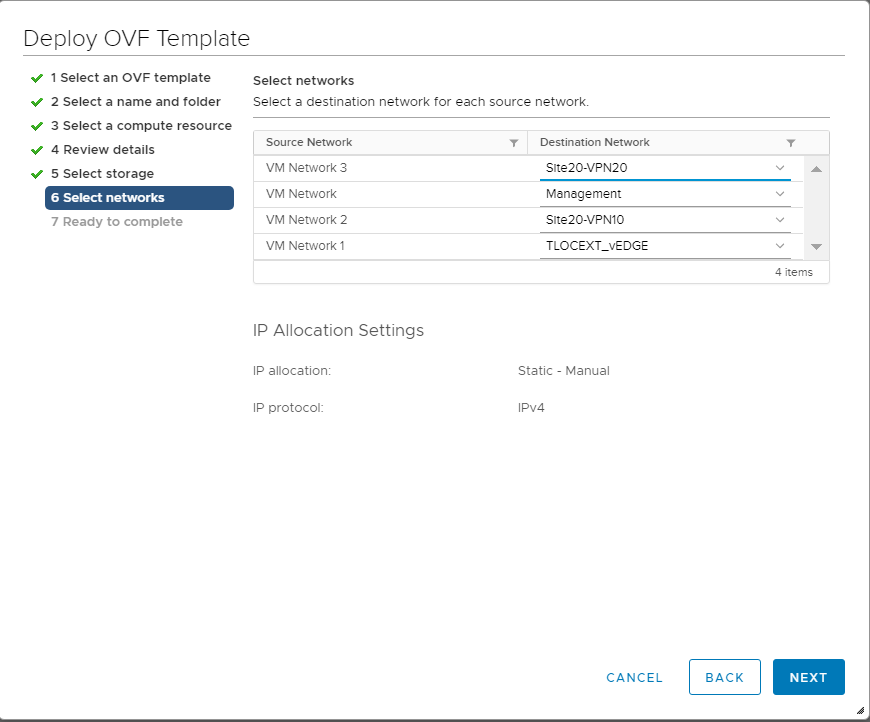

Populate the VM Networks as per the image given below
Important: Please make sure that these look exactly as shown below -

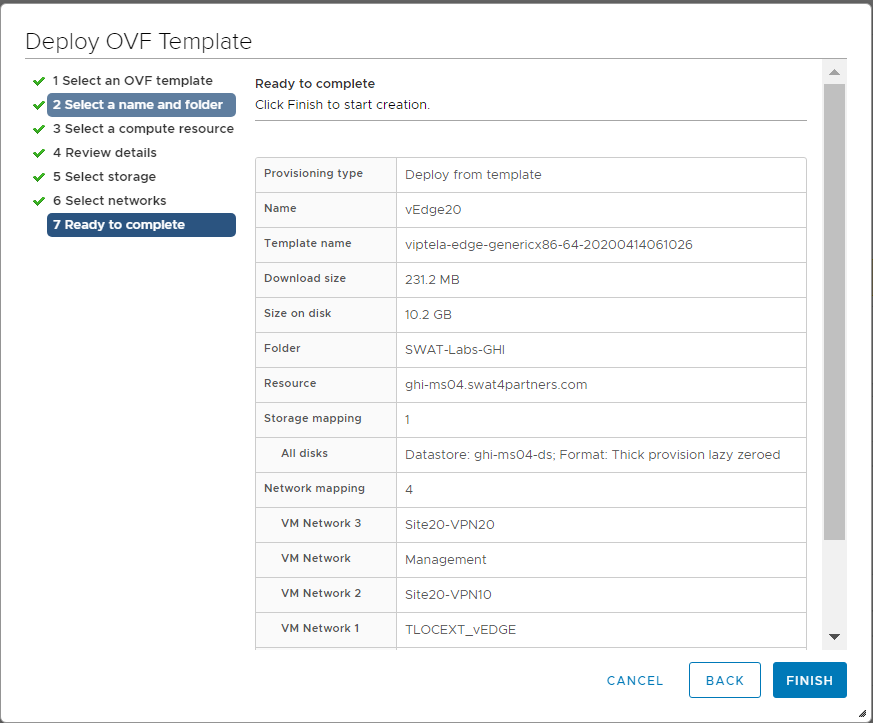

Click on Finish to deploy your vEdge20-podX VM
-

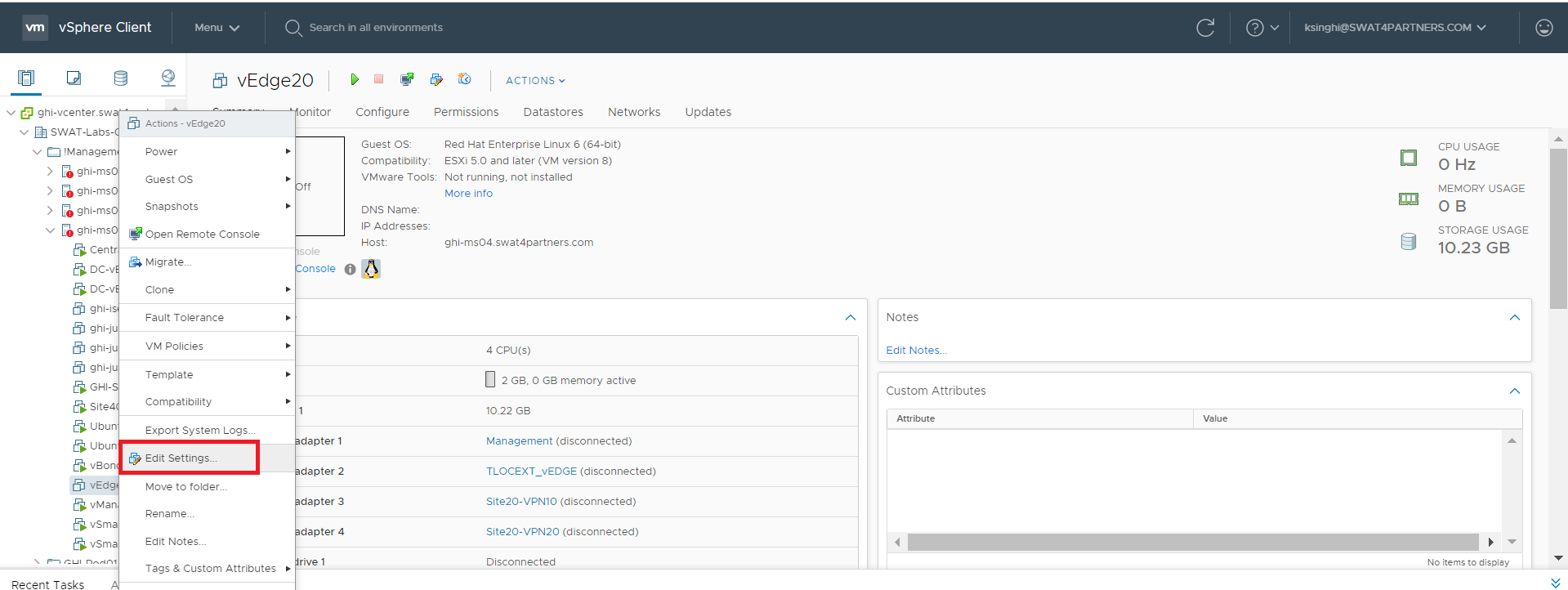

Once the VM is deployed, right click vEdge20-podX and click Edit settings.
-
Choose to Add a new device (top right corner) and select Network Adapter to add one (since our deployed VM has only 4 Network Adapters but we will need 6 for our lab). Add another network device this way, for a total of 6 network adapters.
-

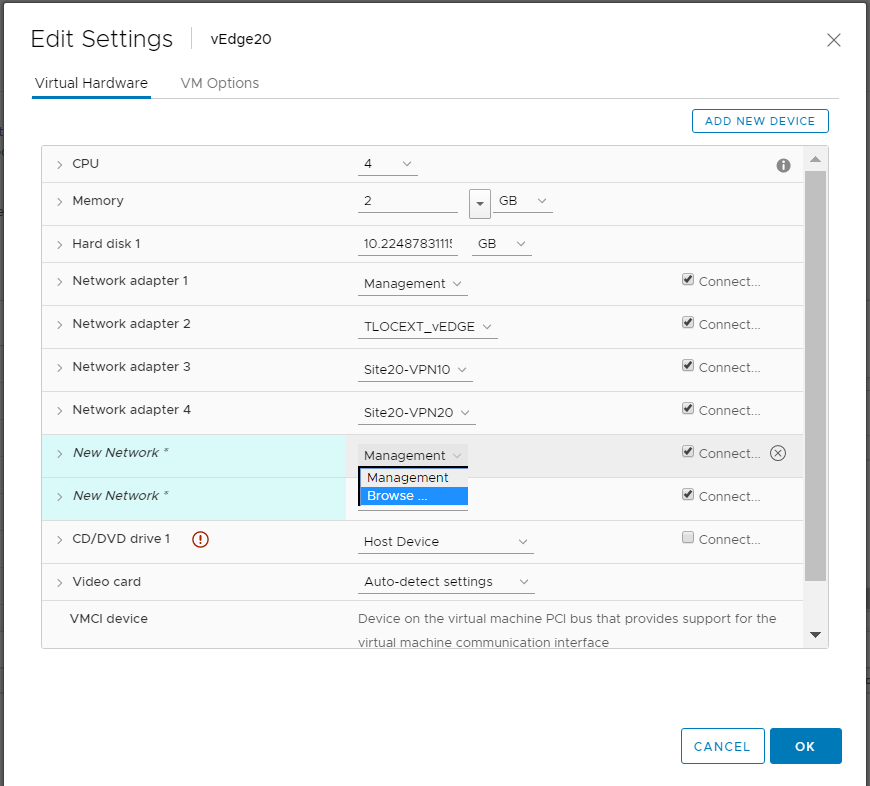

Click on the drop down next to the first New Network and click on Browse
-

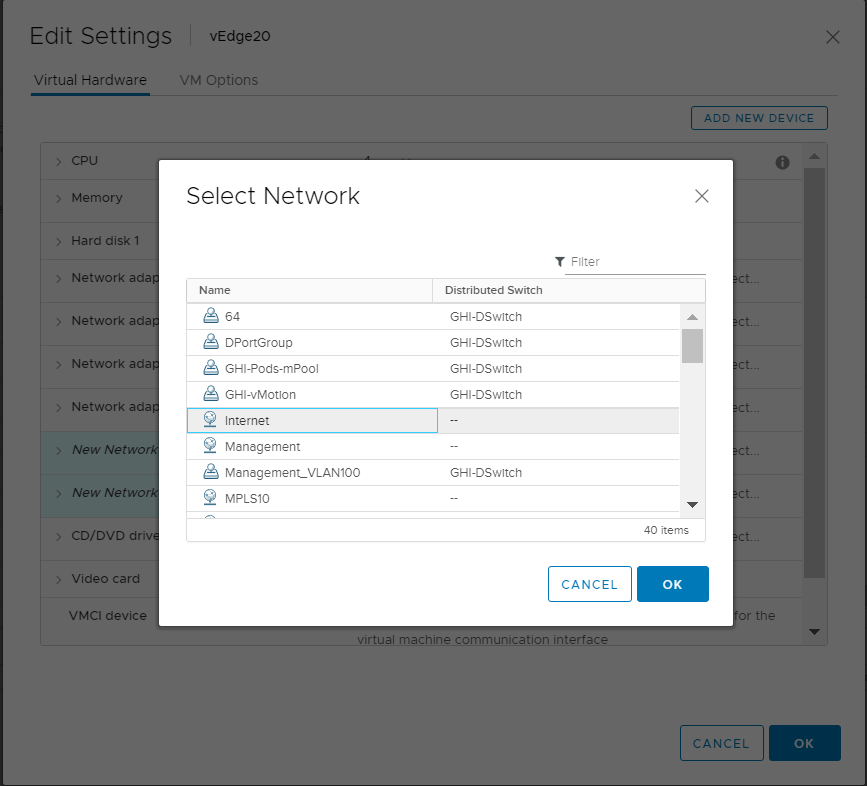

Choose the Internet Network and click on OK.
-

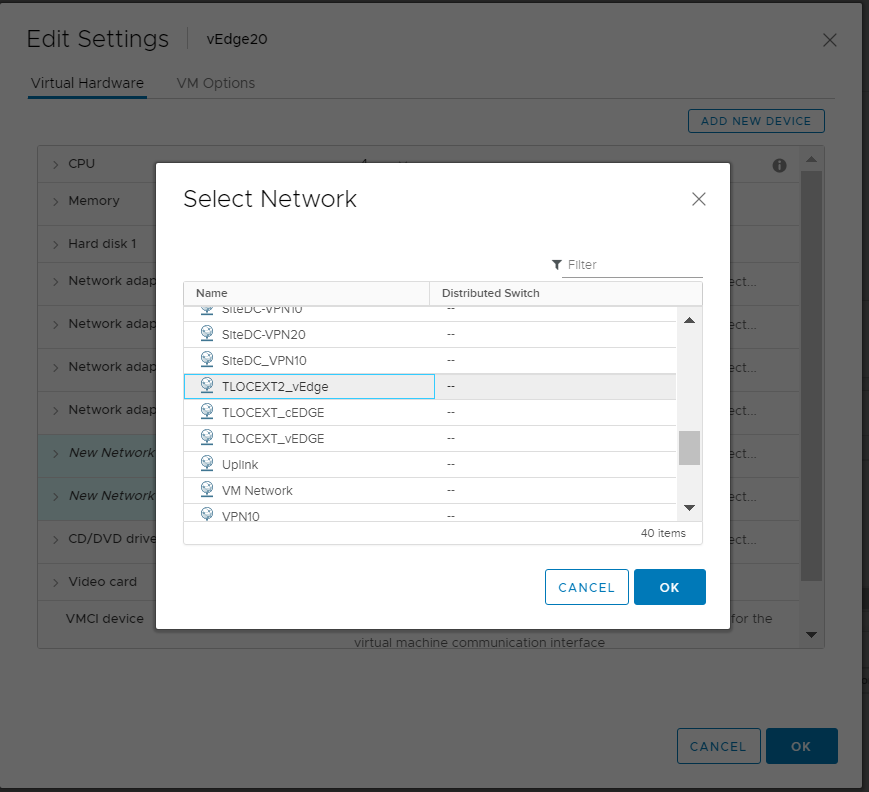

Click on the drop down for the second New Network entry, added as a result of adding two network adapters and click on Browse. Select the TLOCEXT2_vEdge Network
-

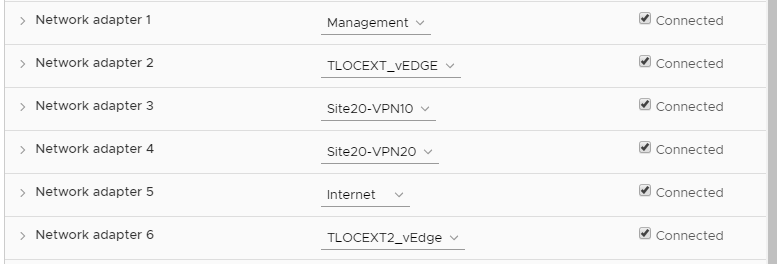

Make sure the Network Adapters match with the image below and click on OK
- Click on vEdge20-podX and choose to power it on
-
-
-
- Onboarding vEdge20
- Bootstrapping vEdge20 (Initial Configuration)
- Installing certificates and activating the vEdge
- Onboarding Verification
Onboarding vEdge20
Bootstrapping vEdge20 (Initial Configuration)
Use the following information in this section (some of the information will be used later)
SITE ID | SYSTEM ID | VM | Network Adapter | Network | Interface | IP | Gateway |
---|---|---|---|---|---|---|---|
20 | 10.255.255.21 | vEdge20 | Network Adapter 1 | Management | eth0 | 192.168.0.20/24 | 192.168.0.1 |
Network Adapter 2 | TLOCEXT_vEdge | ge0/1 | 192.168.25.20/24 | ||||
Network Adapter 3 | Site20-VPN10 | ge0/2 | 10.20.10.2/24 | ||||
Network Adapter 4 | Site20-VPN20 | ge0/3 | 10.20.20.2/24 | ||||
Network Adapter 5 | Internet | ge0/0 | 100.100.100.20/24 | 100.100.100.1 | |||
Network Adapter 6 | TLOCEXT2_vEdge | ge0/4 | 192.168.26.20/24 |
-
Console in to the vEdge20 VM from vCenter (you should already be logged in from our last activity)
-
Wait for the VM to prompt you for the username and password and enter the credentials given below. If you get a message stating that they are incorrect, wait for 30 seconds and try again (since the processes need to initialize before you can log in).
Username Password admin admin Note: From version 19.2, the password will need to be reset on initial login. For this lab, we will reset the password toadmin
. -

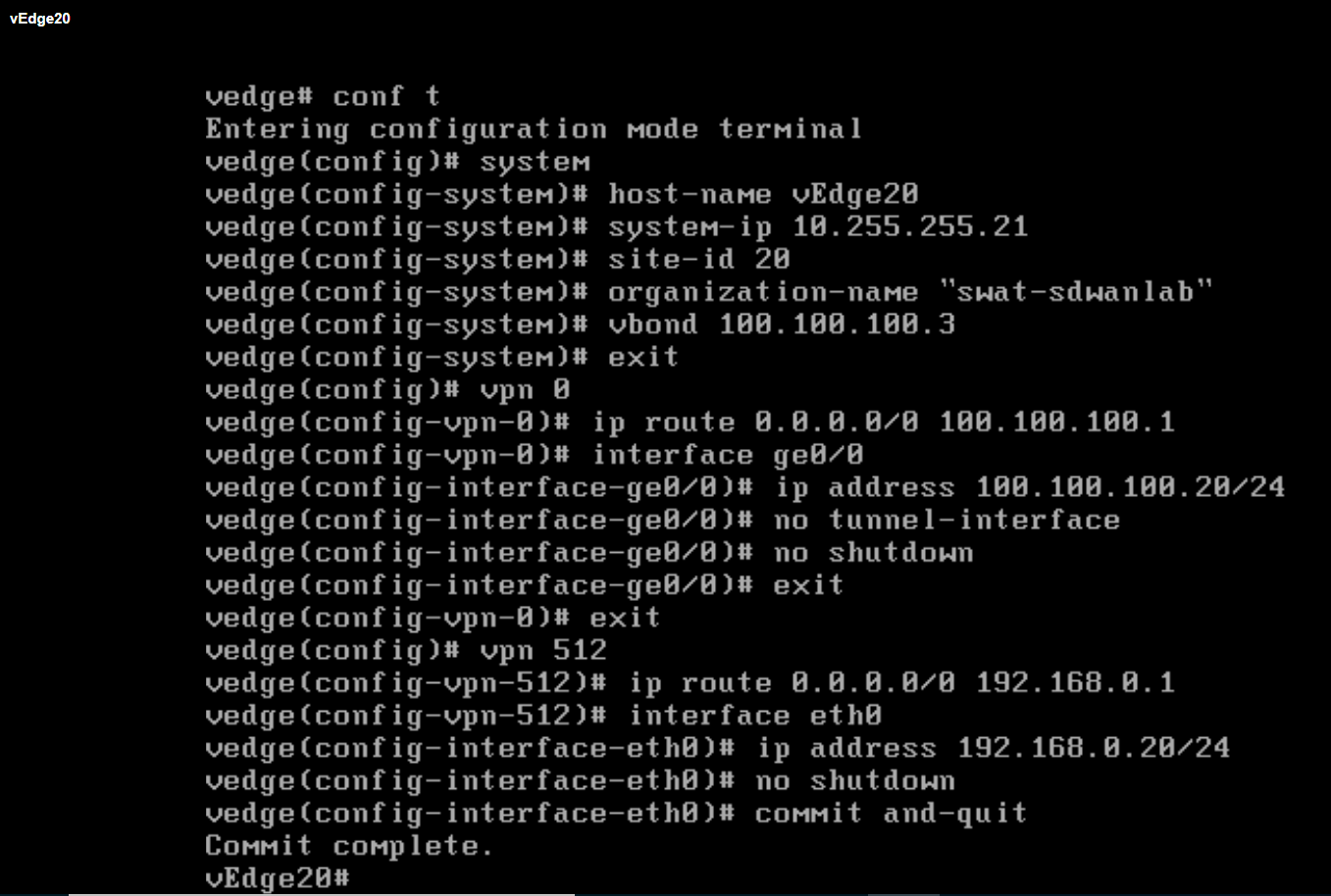

Enter the configuration enumerated below. Unfortunately, this will need to be typed out since the console isn’t copy-paste friendly
conf t system host-name vEdge20 system-ip 10.255.255.21 site-id 20 organization-name "swat-sdwanlab" vbond 100.100.100.3 exit ! vpn 0 ip route 0.0.0.0/0 100.100.100.1 interface ge0/0 ip address 100.100.100.20/24 no tunnel-interface no shutdown exit ! exit ! vpn 512 ip route 0.0.0.0/0 192.168.0.1 interface eth0 ip address 192.168.0.20/24 no shutdown ! commit and-quit
-

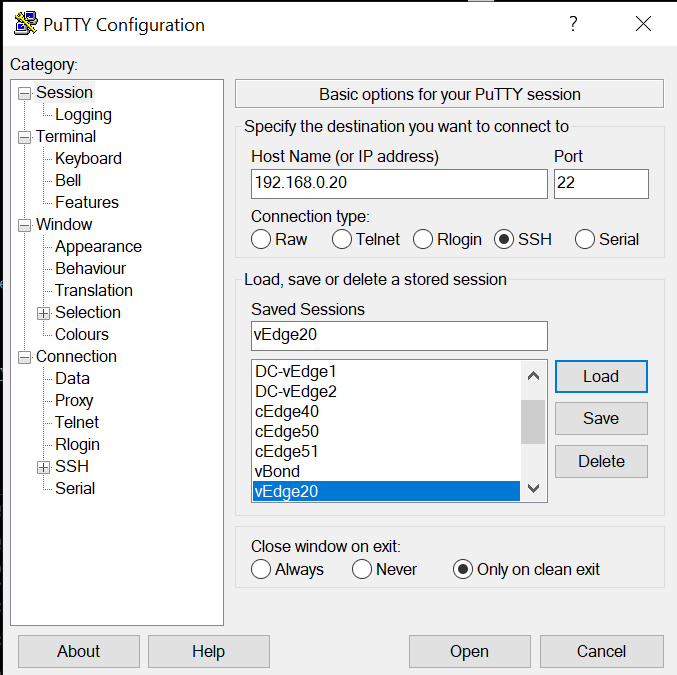

Open Putty and double-click the saved session for vEdge20 (or SSH to 192.168.0.20)
-
Choose Yes to accept the certificate, if prompted
- Log in using the same credentials as Step 2.
-
-
-
- Onboarding vEdge20
-
- Installing certificates and activating the vEdge
- Onboarding Verification
Installing certificates and activating the vEdge

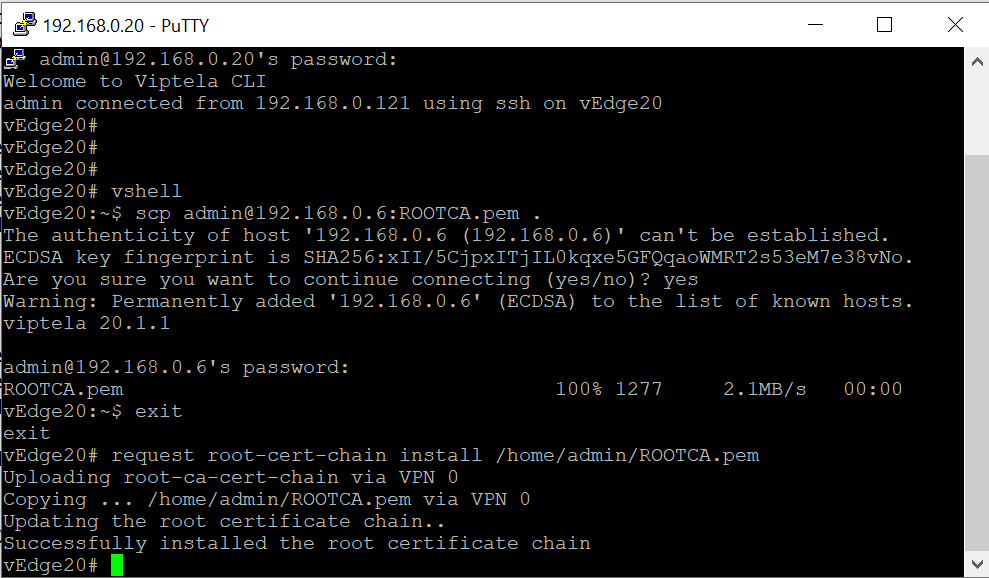

- Type
vshell
and enterscp admin@192.168.0.6:ROOTCA.pem .
to copy the ROOTCA.pem certificate to the vEdge. Commands can be copy-pasted now since we have SSH’d in to the vEdge (there is a dot at the end of the scp command). Enteryes
when prompted and enter the password of vManage (i.e. admin). Exit when done with this step.vshell scp admin@192.168.0.6:ROOTCA.pem .
-
Go to the vManage GUI (https://192.168.0.6) and log in, if logged out. Navigate to Configuration => Devices (from the left-hand side, click on the cog wheel to access the configuration options)
-

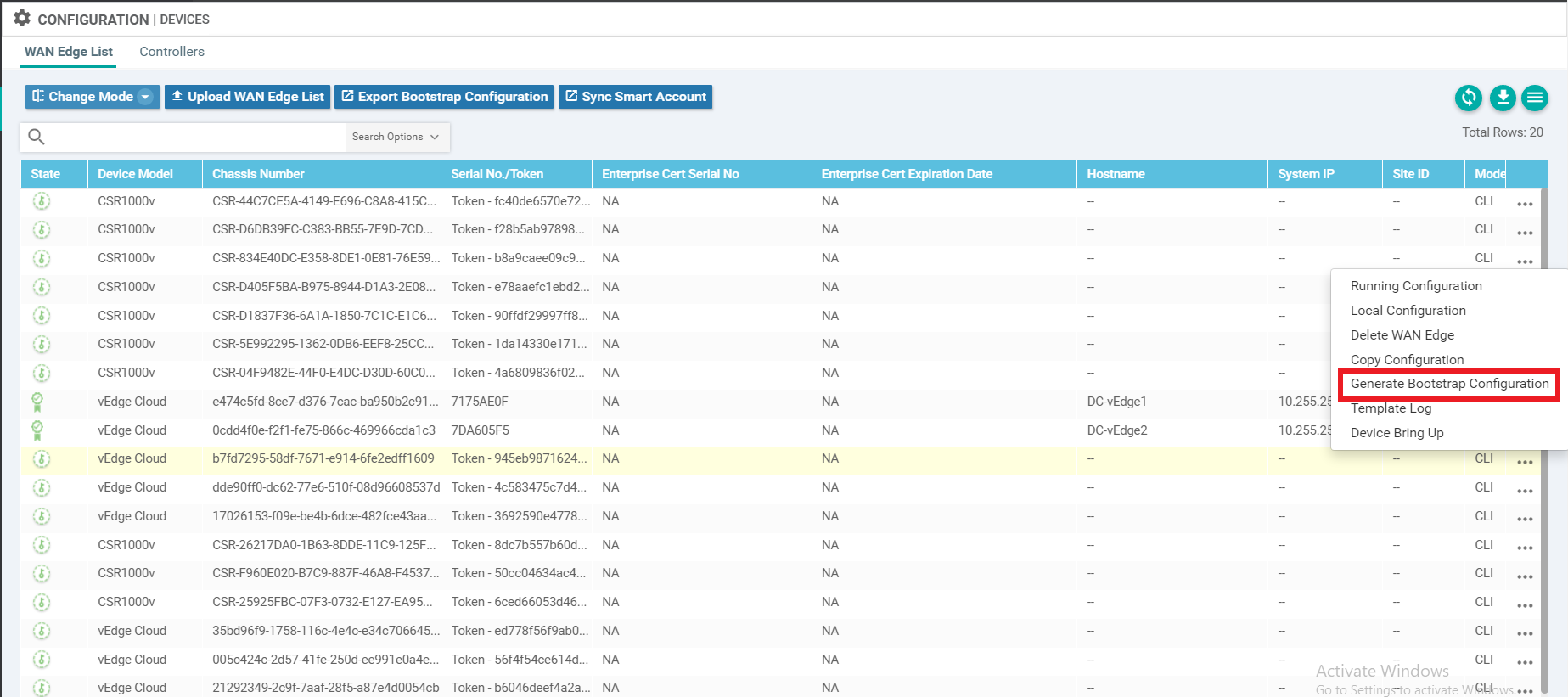

Choose any vEdge Cloud device (it doesn’t matter which one you pick, as long as it is a vEdge Cloud) and click on the three dots at the extreme right-hand side. Choose to Generate Bootstrap Configuration
-
Choose Cloud-Init and uncheck Include Default Root Certificate. Click on OK
-

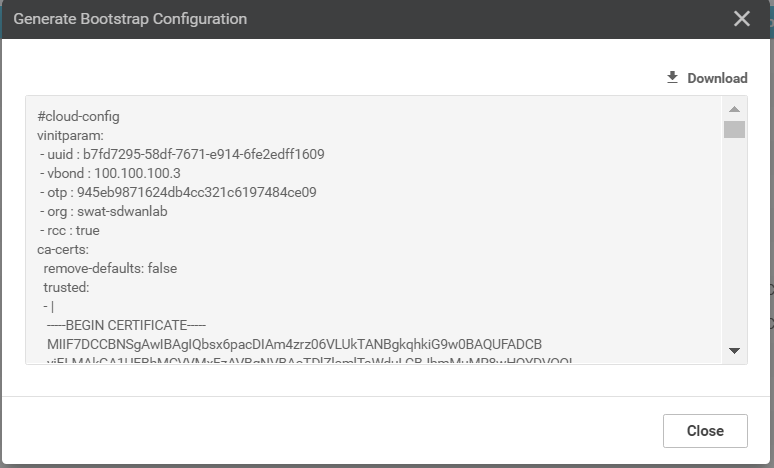

Make note of the UUID and the OTP values. These will be required to activate the vEdge. It’s best to copy the string and place it in notepad, since we will need to use it in our SSH session to the vEdge20 device. Alternatively, leave this popup open and we can come back to it when required
-
Go back to the Putty session for vEdge20 and enter
request root-cert-chain install /home/admin/ROOTCA.pem
to install the root cert chain. It should install successfullyrequest root-cert-chain install /home/admin/ROOTCA.pem

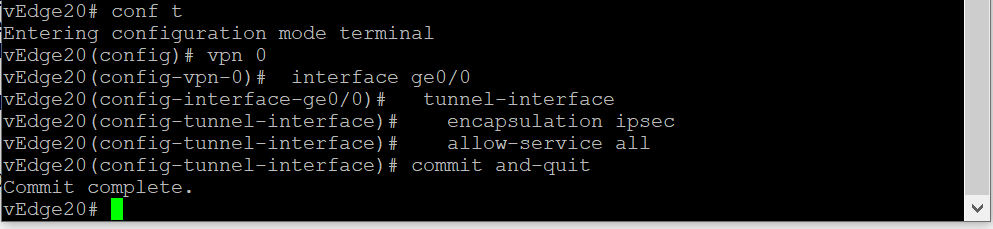

- Enter
tunnel-interface
,encapsulation ipsec
andallow-service all
underinterface ge0/0
to bring up the tunnel Interface. Make sure tocommit and-quit
in order to write the configuration changeconfig t vpn 0 interface ge0/0 tunnel-interface encapsulation ipsec allow-service all exit ! commit and-quit
This ensures that our vEdge is now able to establish control connections with the vManage and vSmarts via the vBond. However, these connections will not be fully formed till we don’t activate the vEdge itself
-

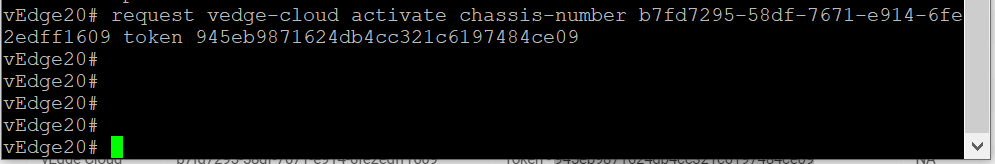

Issue the
request vedge-cloud activate chassis-number (Enter your UUID) token (Enter the OTP)
command. Replace the (Enter your UUID) and (Enter your OTP) fields with the UUID and OTP generated in Step 5 (image below is an example, UUID and OTP may not match).request vedge-cloud activate chassis-number (Enter your UUID) token (Enter the OTP)
This completes the Onboarding section for vEdge20
-
-
-
-
-
-
- Onboarding Verification
Onboarding Verification
-

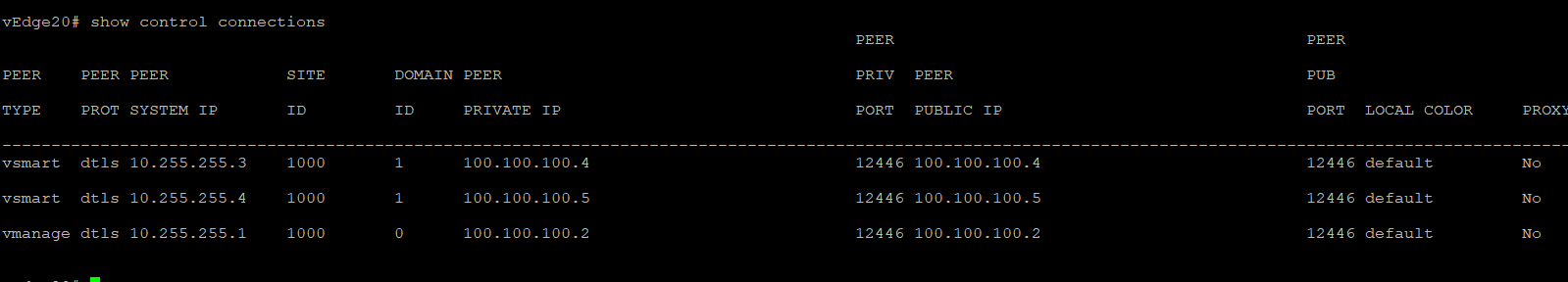

Wait for a couple of minutes and run
show control connections
in the vEdge20 CLI. We should see that the vEdge has been able to establish a DTLS tunnel with the vManage and the vSmarts. If you don’t see any output, wait for a couple of minutes and run the command againshow control connections
Tip: You can also issueshow control connections-history
in the event of failures to find out why is the connection not working as expected. A few helpful commands areshow certificate installed
,show certificate root-ca-cert
,show control local-properties
andshow certificate validity
. Most of these commands give us details about the status of certificates on the device and are helpful in ascertaining the root cause of failure when control connections aren’t getting established. -

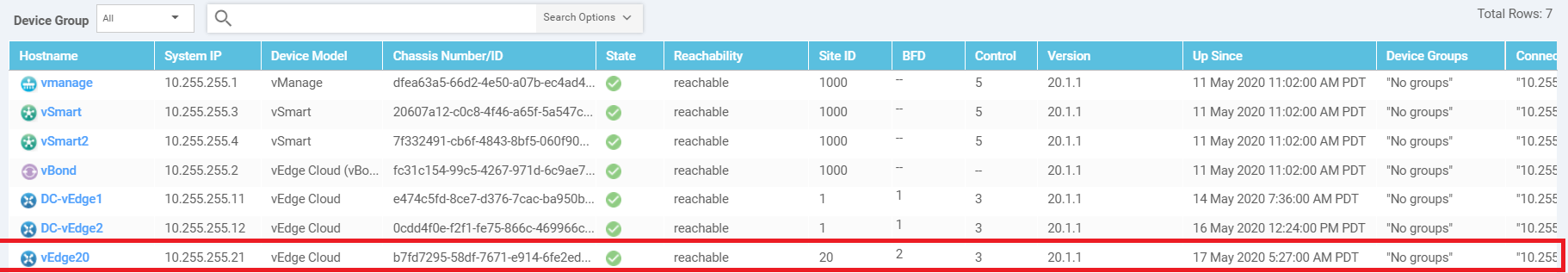

On the vManage GUI, navigate to Monitor => Network Devices (the computer icon on the left-hand side)
-
vEdge20 should show up in the list of devices
-

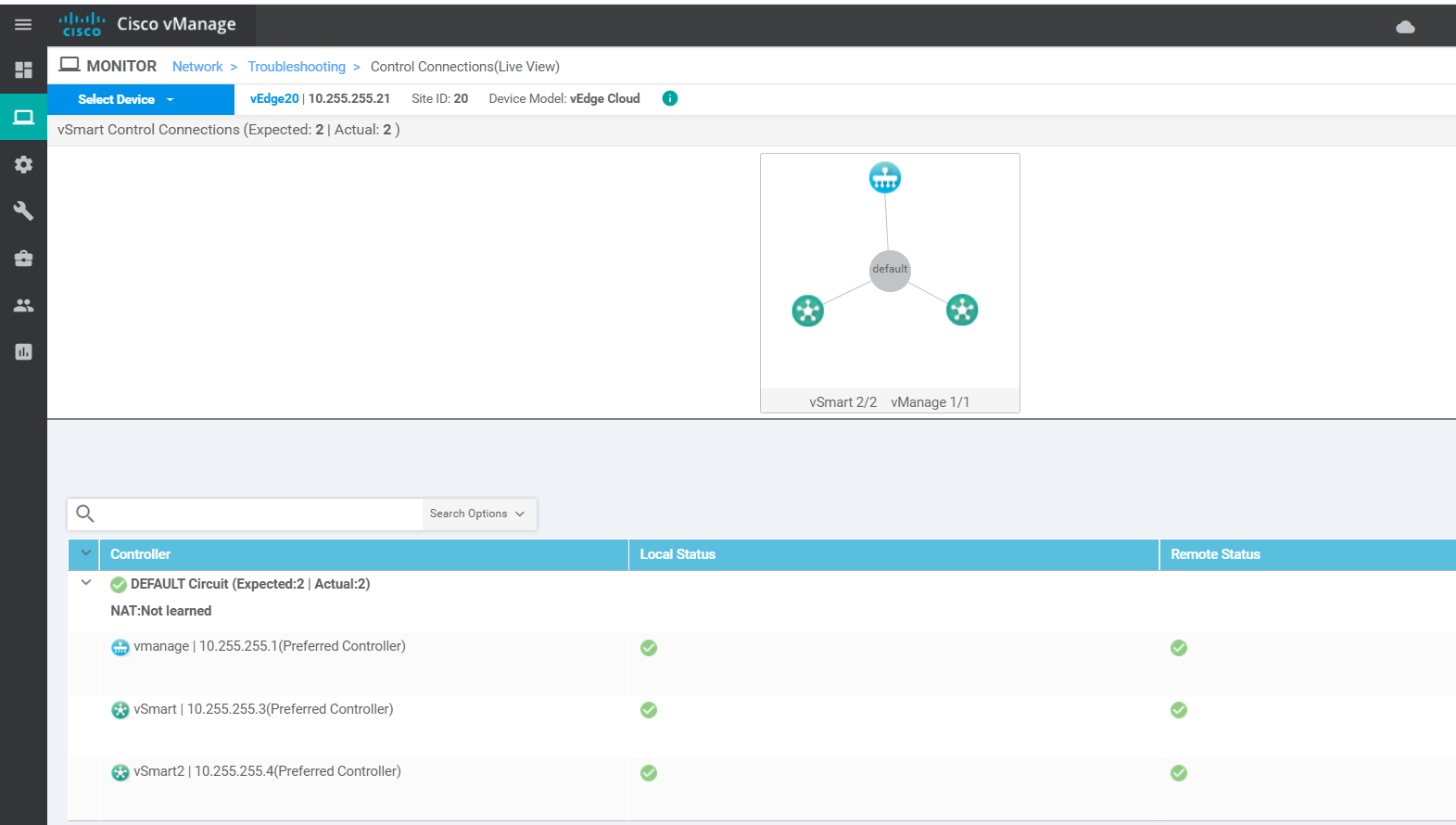

Click on vEdge20 and navigate to Troubleshooting => Control Connections(Live view). You should see the vEdge successfully connected to 2 vSmarts and 1 vManage
-
On the main dashboard, notice that we now have three WAN Edges onboarded on vManage. The two sites also have WAN connectivity since BFD sessions have been established.
-

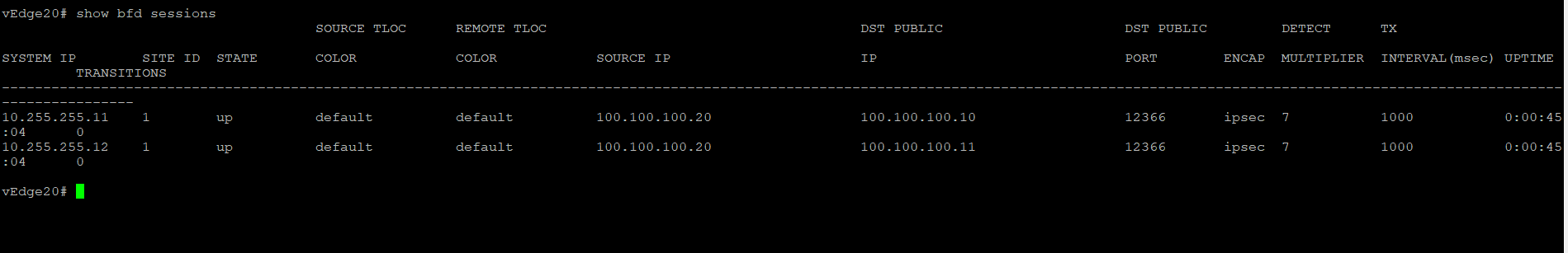

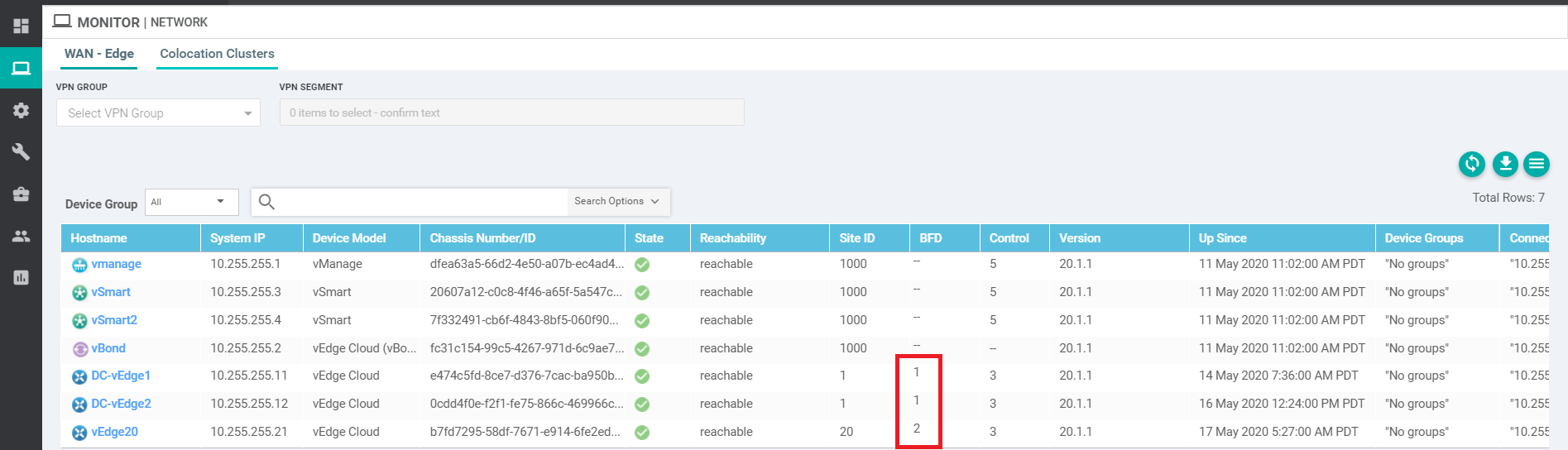

This can be verified from the Monitor => Network page as well, where we will see active BFD sessions on all devices. Via CLI, this can be checked using
show bfd sessions
site-id
command), hence won’t have BFD entries for each otherThis completes the verification activity.
