Step by step process for deploying DC-vEdge2


Task List

- Creating the DC-vEdge2 VM
        - Overview
        - Deploying the DC-vEdge2 VM on vCenter
- Onboarding DC-vEdge2
        - Bootstrapping DC-vEdge2 (Initial Configuration)
        - Installing certificates and activating the vEdge
- Onboarding Verification
- Helpful debugs and logs

Creating the DC-vEdge2 VM

Overview

This is what an earmarked step will look like

We will be deploying another vEdge in our first site (the Data Center) via vCenter. Make note of the following information for this section. The IP Addressing will not be used for some of the Network Adapters until later.

VM Name System IP Network Adapter Network Interface IP Address Default Gateway
DC-vEdge2-podX 10.255.255.12 Network Adapter 1 Management eth0 192.168.0.11/24 192.168.0.1
    Network Adapter 2 MPLS11 ge0/1 192.0.2.6/30 192.0.2.5
    Network Adapter 3 SiteDC_VPN10 ge0/2 10.100.10.3/24 10.100.10.1
    Network Adapter 4 SiteDC-VPN20 ge0/3 10.100.20.3/24 10.100.20.1
    Network Adapter 5 Internet ge0/0 100.100.100.11/24 100.100.100.1


Deploying the DC-vEdge2 VM on vCenter


  1. Click on the bookmark for vCenter or navigate to the following URL: https://10.2.1.50/ui if connected to the GHI DC and 10.1.1.50/ui if connected to the SJC DC. Log in with the credentials provided for your POD.

  2. Right click on the host and choose to Deploy OVF Template

  3. Choose the Local file option and click on Choose files. Navigate to the SD-WAN images folder and select the file beginning with viptela-edge-. Click on Next.

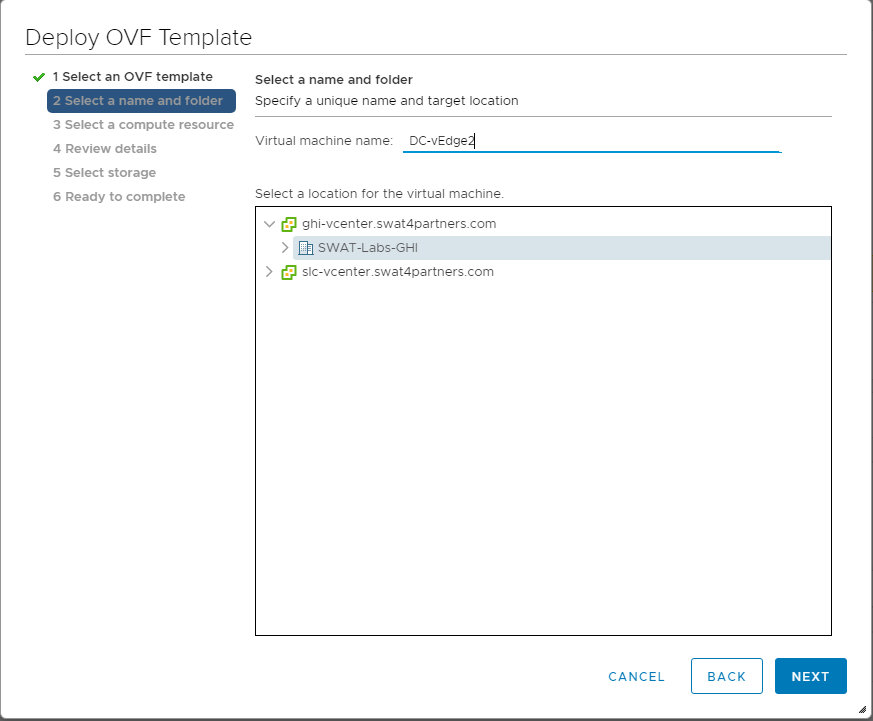

  4. Change the Virtual Machine name to DC-vEdge2-podX and click on Next (where X is your POD number, image below doesn’t have the suffix of podX)

  5. Select the host assigned to you (image shown as an example only) and click on Next

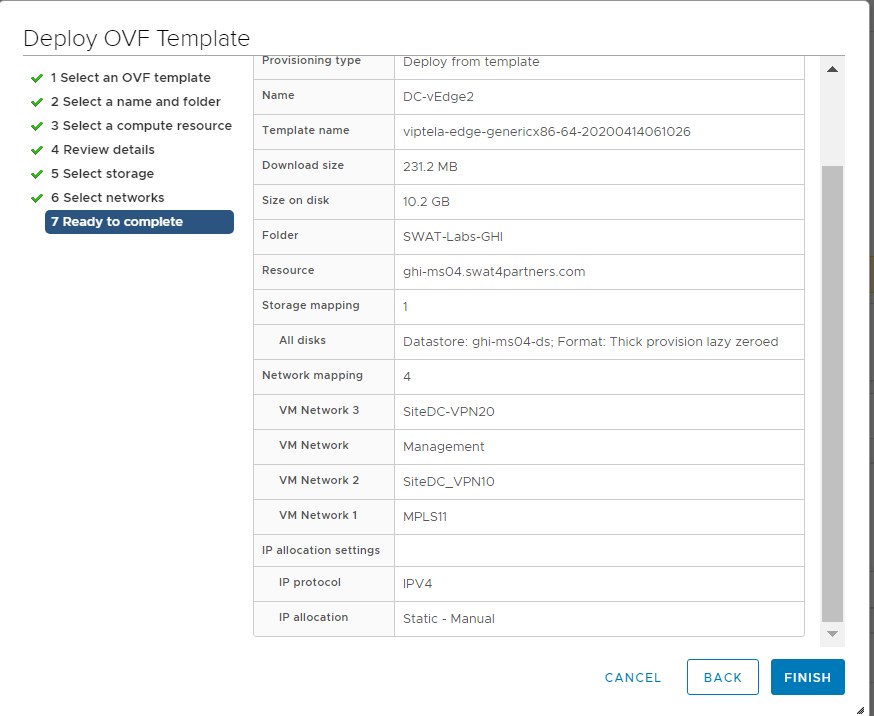

  6. Review the details shown and click on Next

  7. Choose the Datastore and click on Next

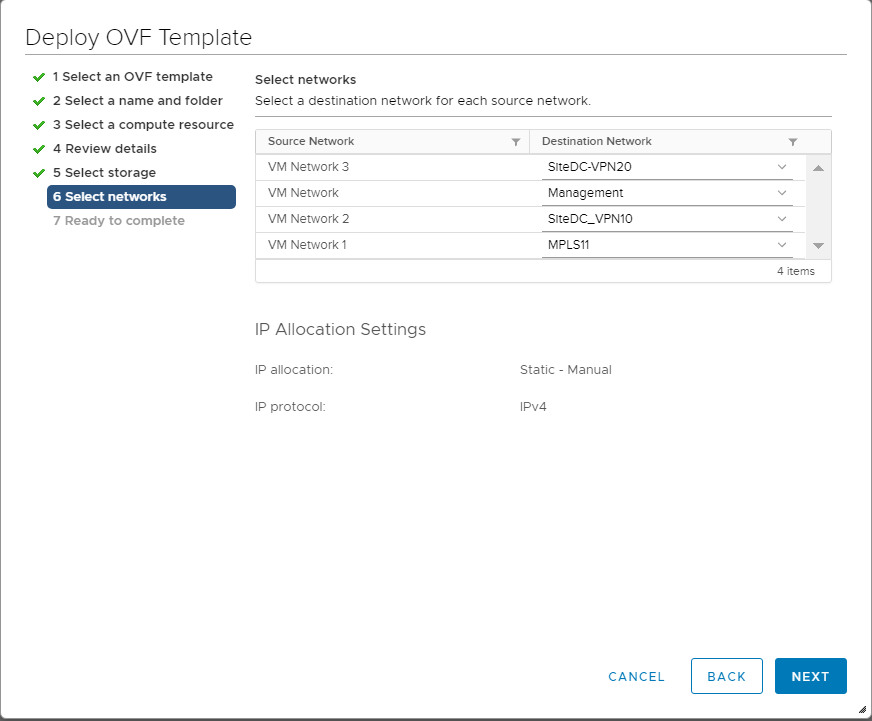

  8. Populate the VM Networks as per the image given below

  9. Click on Finish to deploy your DC-vEdge2-podX VM

  10. Once the VM is deployed, right click DC-vEdge2-podX and click Edit settings.

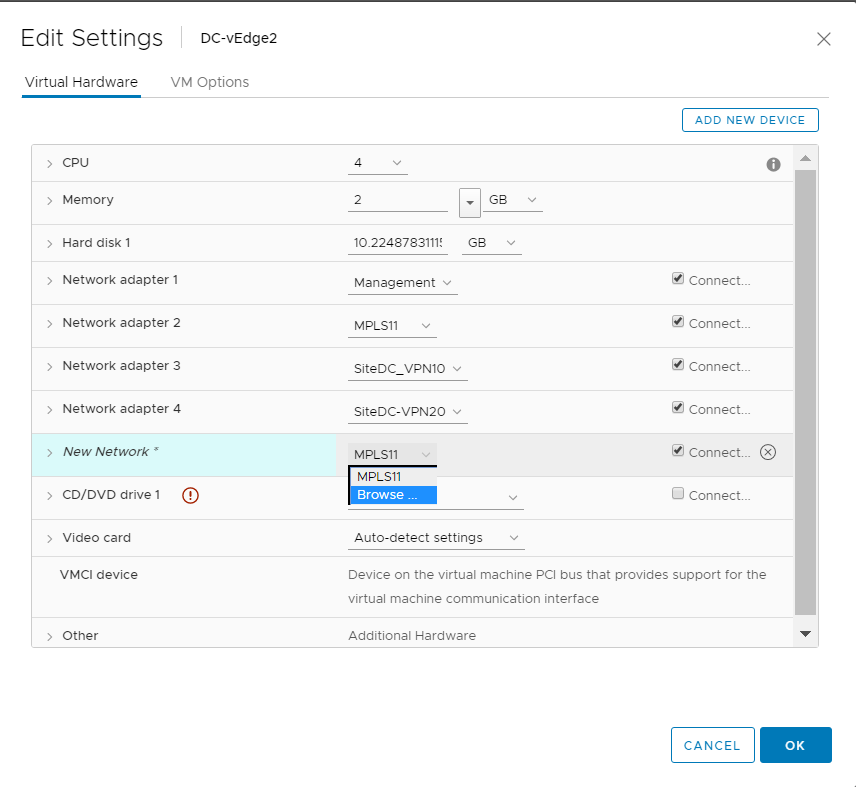

  11. Choose to Add a new device (top right corner) and select Network Adapter to add one (since our deployed VM has only 4 Network Adapters but we will need 5 for our lab)

  12. Click on the drop down next to New Network and click on Browse

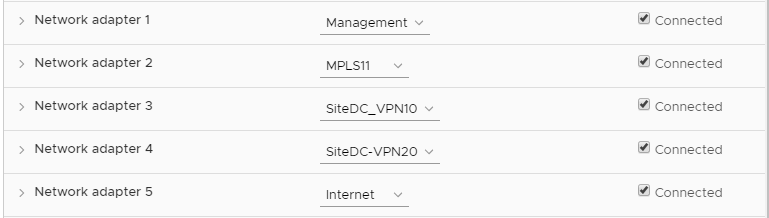

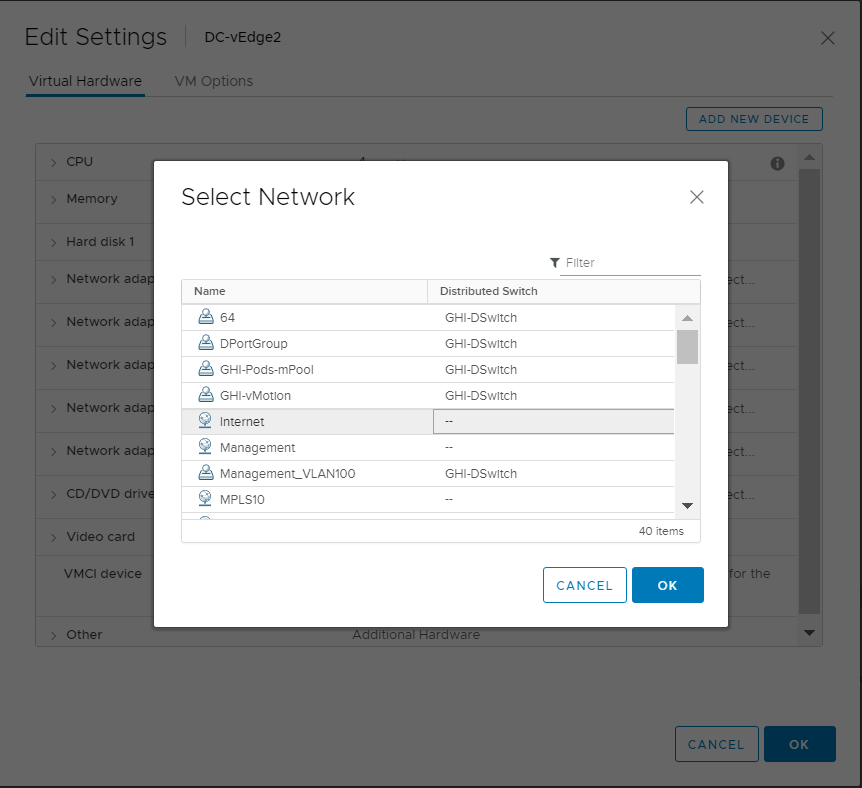

  13. Choose the Internet Network and click on OK. Make sure the Network Adapters match with the second image below and click on OK again

  14. Click on DC-vEdge2-podX and choose to power it on


Onboarding DC-vEdge2

Bootstrapping DC-vEdge2 (Initial Configuration)

Use the following information in this section (some of the information will be used later)

SITE ID SYSTEM IP VM Network Adapter Network Interface IP Gateway
1 10.255.255.12 DC-vEdge2 Network Adapter 1 Management eth0 192.168.0.11/24 192.168.0.1
      Network Adapter 2 MPLS11 ge0/1 192.0.2.6/30 192.0.2.5
      Network Adapter 3 SiteDC_VPN10 ge0/2 10.100.10.3/24 10.100.10.1
      Network Adapter 4 SiteDC-VPN20 ge0/3 10.100.20.3/24 10.100.20.1
      Network Adapter 5 Internet ge0/0 100.100.100.11/24 100.100.100.1
  1. Console in to the DC-vEdge2 VM from vCenter (you should already be logged in from our last activity)

  2. Wait for the VM to prompt you for the username and password and enter the credentials given below. If you get a message stating that they are incorrect, wait for 30 seconds and try again (since the processes need to initialize before you can log in)

    Username Password
    admin admin
  3. Enter the configuration enumerated below. Unfortunately, this will need to be typed out since the console isn’t copy-paste friendly

     conf t
     system
      host-name DC-vEdge2
      system-ip 10.255.255.12
      site-id 1
      organization-name "swat-sdwanlab"
      vbond 100.100.100.3
      exit
     !
     vpn 0
      ip route 0.0.0.0/0 100.100.100.1
      interface ge0/0
       ip address 100.100.100.11/24
       no tunnel-interface
       no shutdown
       exit
       !
       exit
     !
     vpn 512
      ip route 0.0.0.0/0 192.168.0.1
      interface eth0
       ip address 192.168.0.11/24
       no shutdown
     !
     commit and-quit

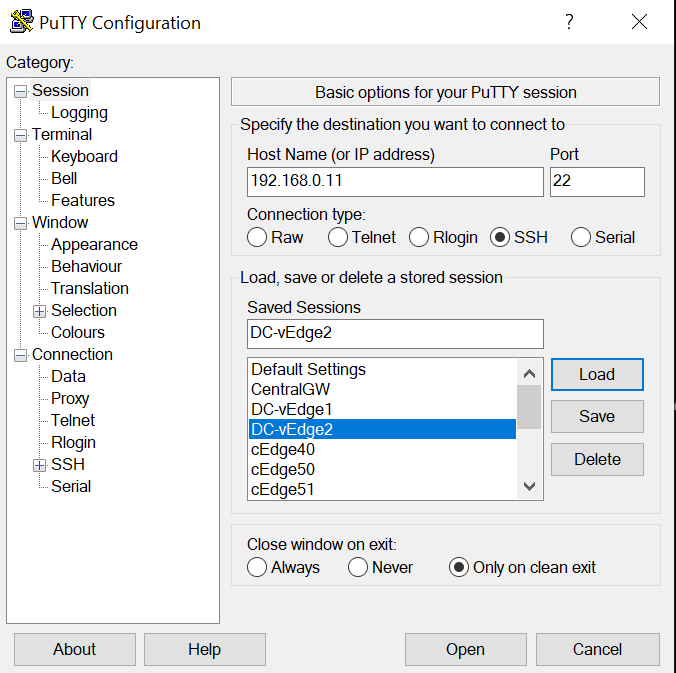

  4. Open Putty and double-click the saved session for DC-vEdge2 (or SSH to 192.168.0.11)

  5. Choose Yes to accept the certificate, if prompted

  6. Log in using the same credentials as Step 2.


Installing certificates and activating the vEdge

  1. Type vshell and enter scp admin@192.168.0.6:ROOTCA.pem . to copy the ROOTCA.pem certificate to the vEdge. Commands can be copy-pasted now since we have SSH’d in to the vEdge (there is a dot at the end of the scp command). Enter yes when prompted and enter the password of vManage (i.e. admin). Exit when done with this step.
     vshell
     scp admin@192.168.0.6:ROOTCA.pem .

  2. Go to the vManage GUI (https://192.168.0.6) and log in, if logged out. Navigate to Configuration => Devices (from the left-hand side, click on the cog wheel to access the configuration options)

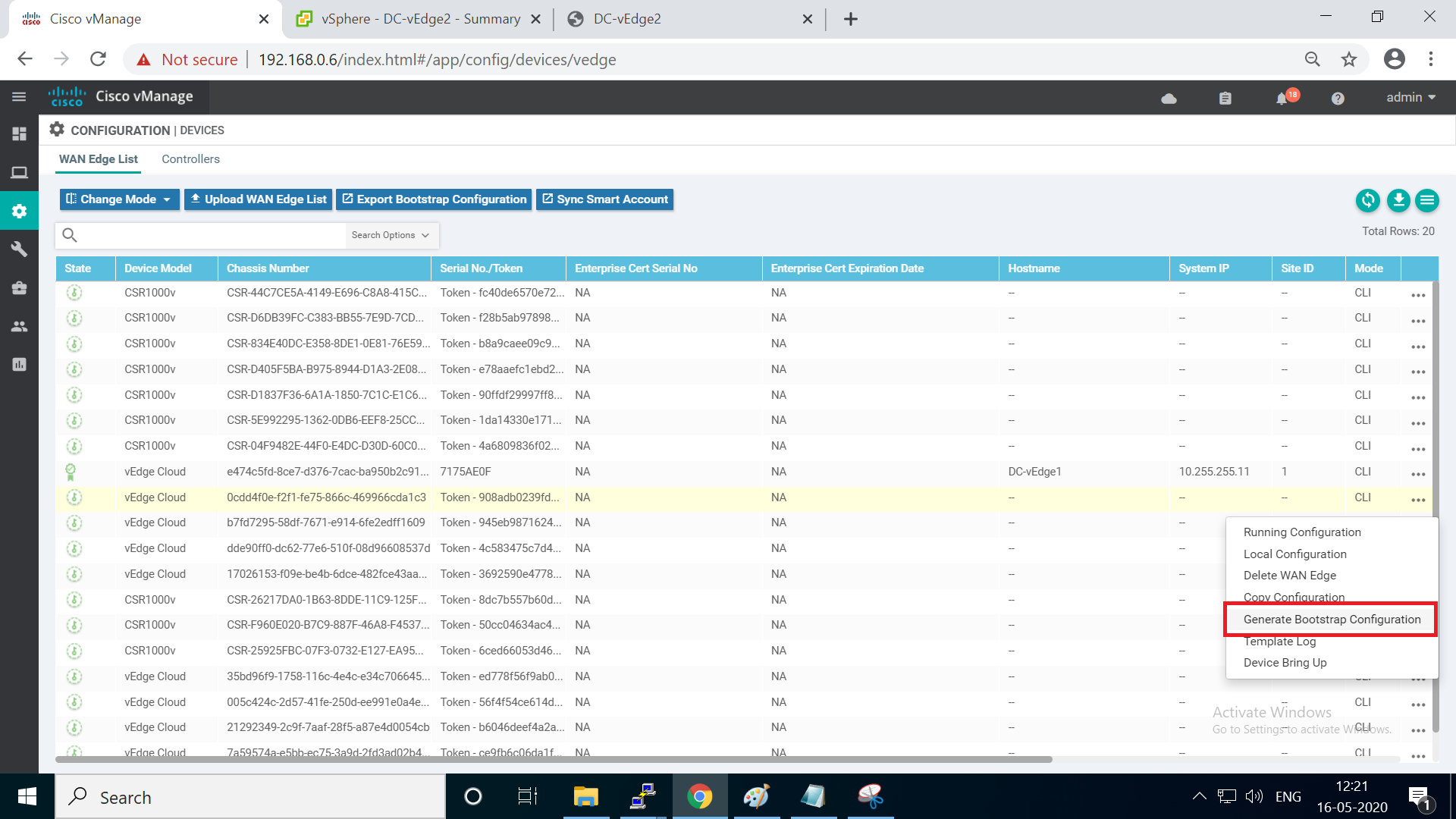

  3. Choose any vEdge Cloud device (it doesn’t matter which one you pick, as long as it is a vEdge Cloud) and click on the three dots at the extreme right-hand side. Choose to Generate Bootstrap Configuration

  4. Choose Cloud-Init and uncheck Include Default Root Certificate. Click on OK

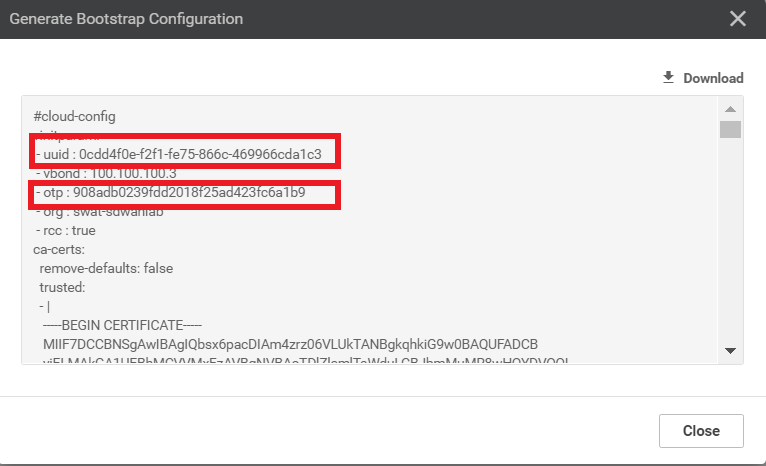

  5. Make note of the UUID and the OTP values. These will be required to activate the vEdge. It’s best to copy the string and place it in notepad, since we will need to use it in our SSH session to the DC-vEdge2 device. Alternatively, leave this popup open and we can come back to it when required

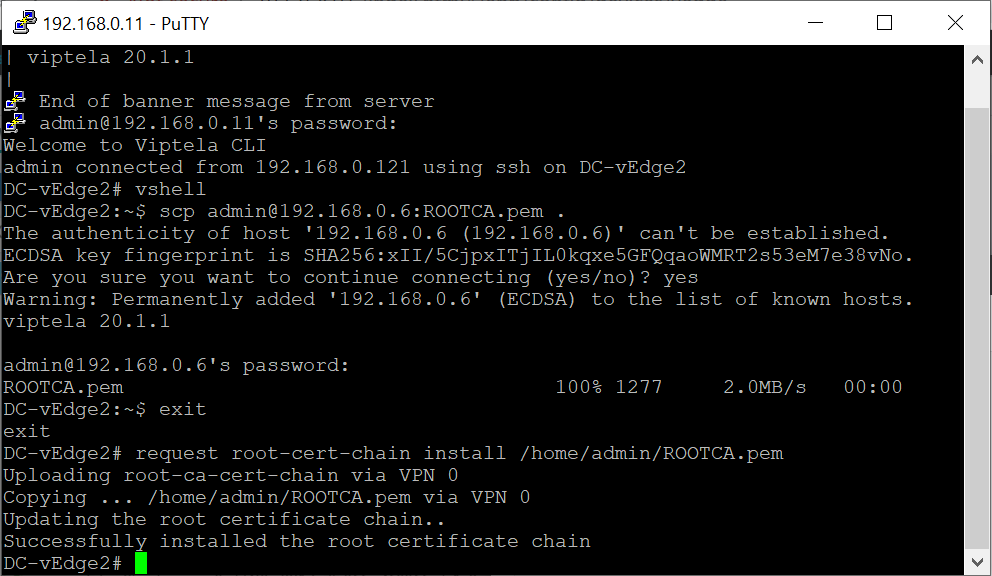

  6. Go back to the Putty session for DC-vEdge2 and enter request root-cert-chain install /home/admin/ROOTCA.pemto install the root cert chain. It should install successfully

     request root-cert-chain install /home/admin/ROOTCA.pem

  7. Enter tunnel-interface, encapsulation ipsec and allow-service all under interface ge0/0 to bring up the tunnel Interface. Make sure to commit and-quit in order to write the configuration change
     config t
     vpn 0
     interface ge0/0
      tunnel-interface
      encapsulation ipsec
      allow-service all
      exit
      !
      commit and-quit


    This ensures that our vEdge is now able to establish control connections with the vManage and vSmarts via the vBond. However, these connections will not be fully formed till we don’t activate the vEdge itself

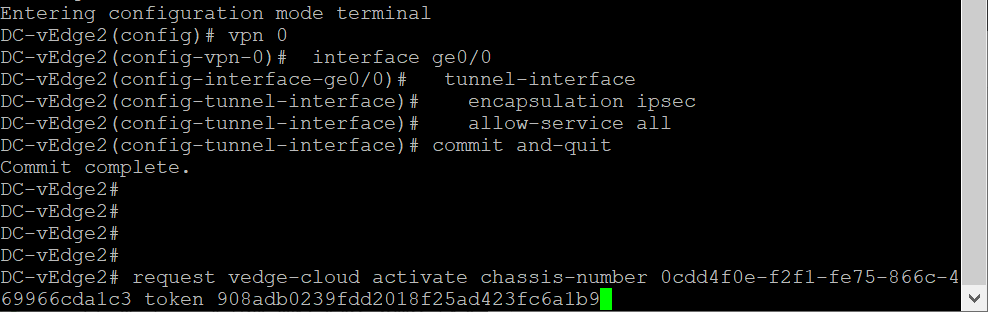

  8. Issue the request vedge-cloud activate chassis-number (Enter your UUID) token (Enter the OTP)command. Replace the (Enter your UUID) and (Enter your OTP) fields with the UUID and OTP generated in Step 5 (image below is an example, UUID and OTP may not match).

     request vedge-cloud activate chassis-number (Enter your UUID) token (Enter the OTP)


    This completes the Onboarding section for DC-vEdge2


Onboarding Verification

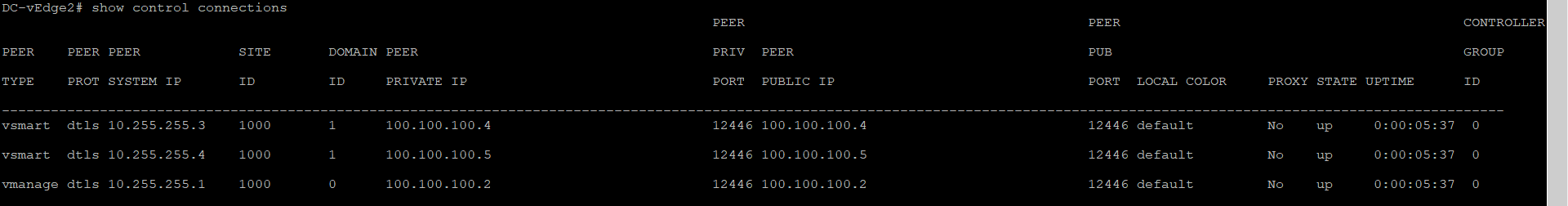

  1. Wait for a couple of minutes and run show control connections in the DC-vEdge2 CLI. We should see that the vEdge has been able to establish a DTLS tunnel with the vManage and the vSmarts. If you don’t see any output, wait for a couple of minutes and run the command again

     show control connections

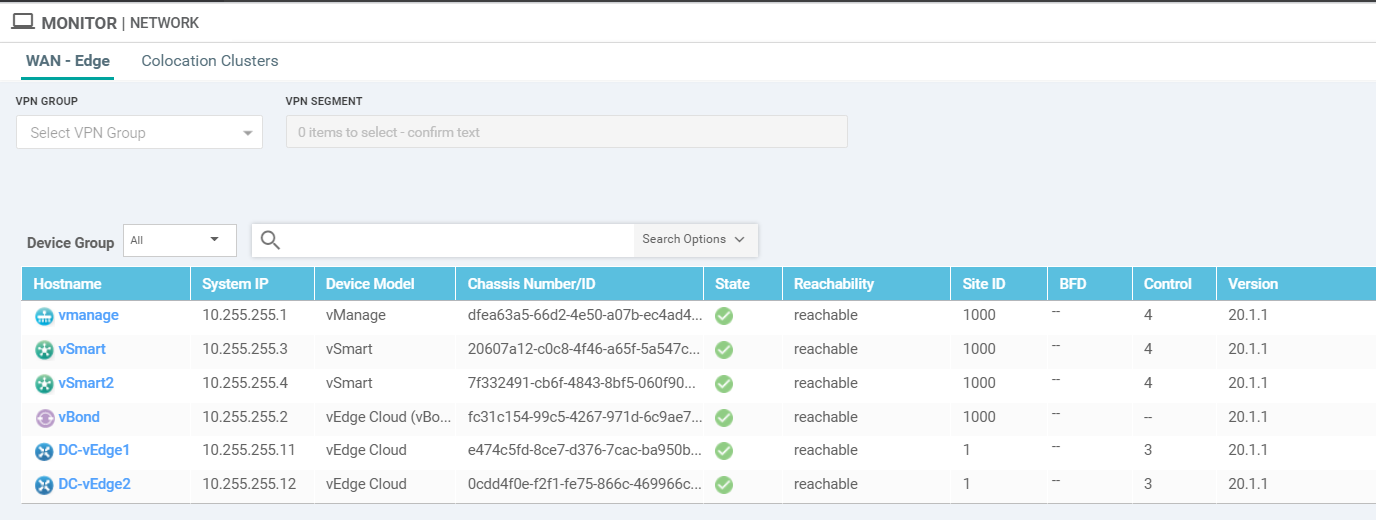

  2. On the vManage GUI, navigate to Monitor => Network Devices (the computer icon on the left-hand side)

  3. DC-vEdge2 should show up in the list of devices

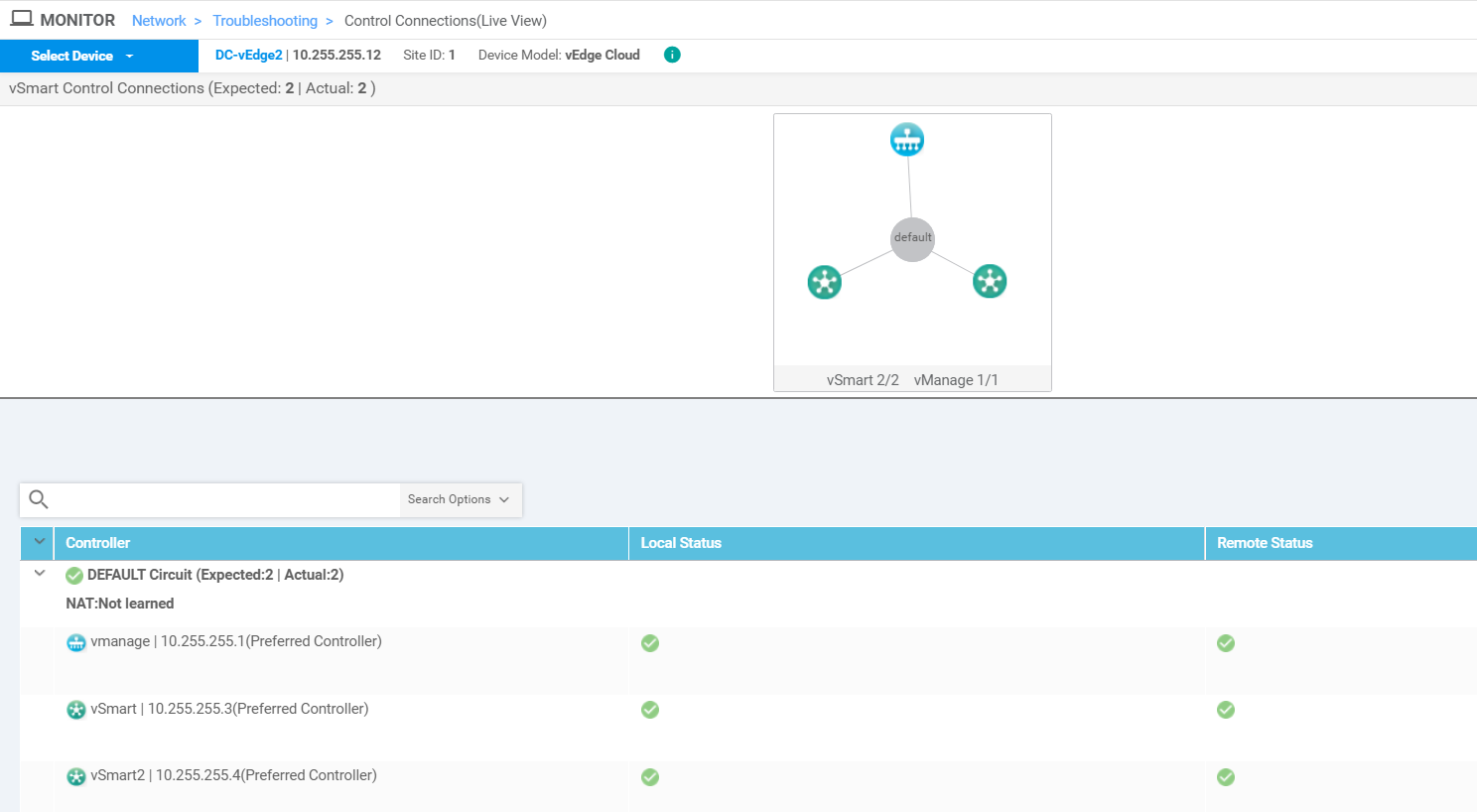

  4. Click on DC-vEdge2 and navigate to Troubleshooting => Control Connections(Live view). You should see the vEdge successfully connected to 2 vSmarts and 1 vManage

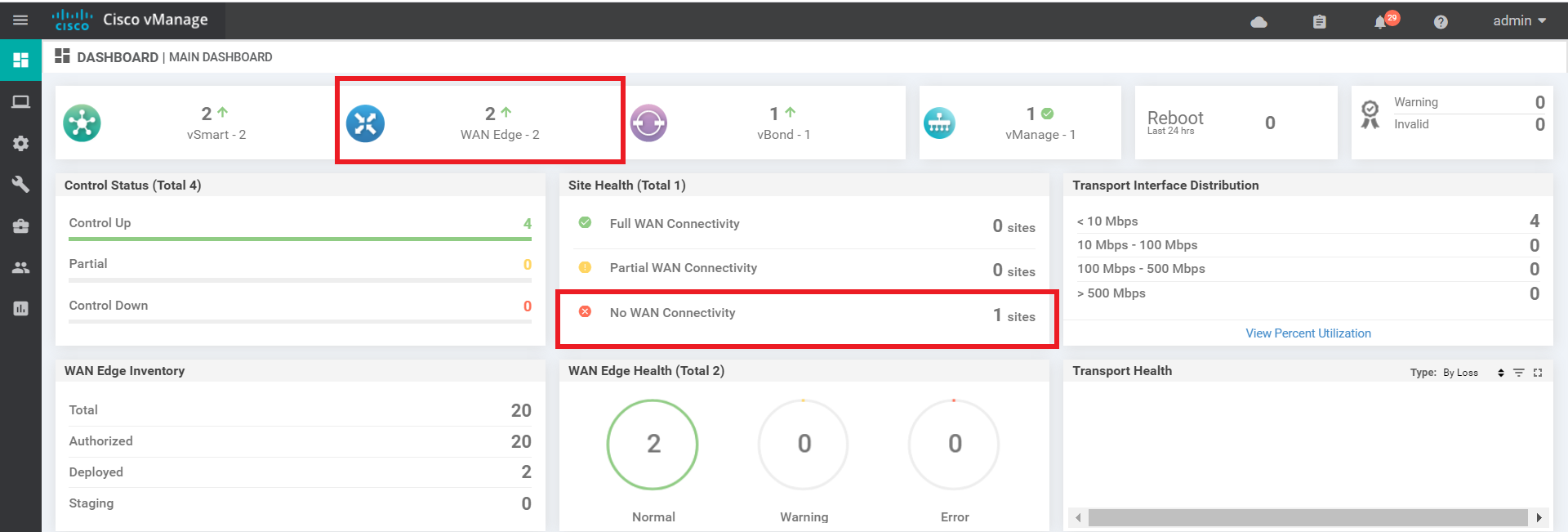

  5. On the main dashboard, notice that we now have two WAN Edges onboarded on DNAC. The site doesn’t have WAN connectivity yet since BFD sessions are not being established as of now. This will change once we get more sites onboard

This completes the verification activity.


Helpful debugs and logs

  1. On the CLI for DC-vEdge2, issue debug vdaemon all followed by clear control connections. This will tear down all the control connections and the vEdge will rebuilt the DTLS tunnels. We can capture the logs to see the process associated with the DTLS tunnels being built
     debug vdaemon all
     clear control connections

  2. Wait for a couple of minutes and go to vshell. Type cat /var/log/tmplog/vdebug to view the contents of the log file

  3. Given below are a couple of sample outputs

This completes our onboarding activity for DC-vEdge2.
